Instant Optical Measurement Machine
Instant Dimension Measuring Machine-MiMi Series
1. Principle & Working Process
Principle

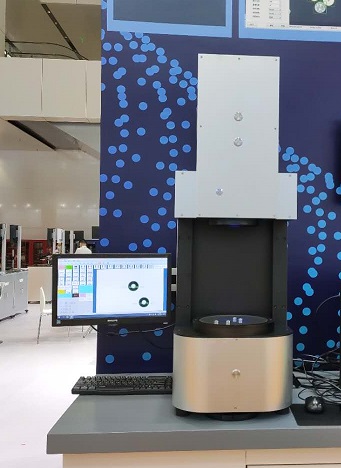

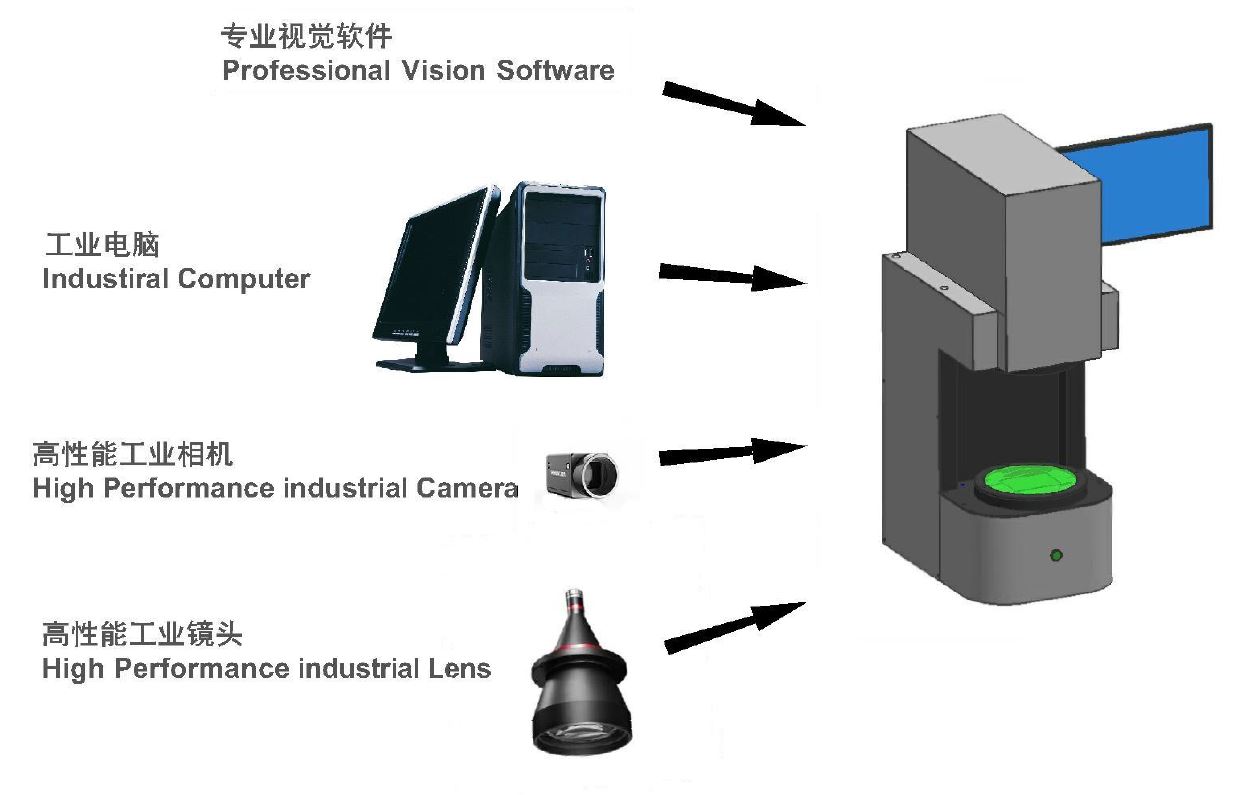

Consisted of Professional Vision Software, Industrial Computer, High Performance Industrial Camera and Lens, This machine can measure part’s dimensions very fast and with high precision.
Working Step
1) parts dimension measuring

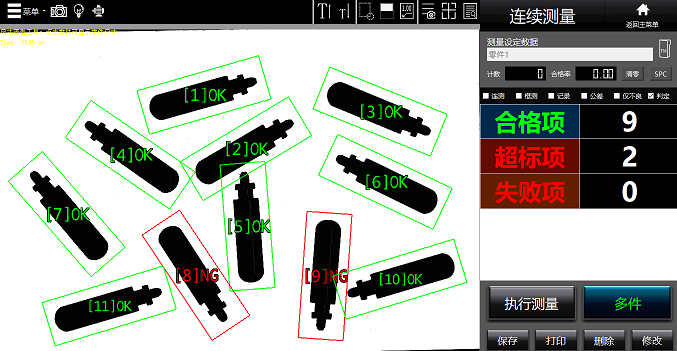

Put Parts on the measuring table, push one button, the results of dimension measuring will be displayed on screen within 1 second. One time can measure one big part, or many small parts. Fast & high precision measurement. Workers can remove NG parts indicated by displayer, and collect OK parts.
2) Auto-focus or Manual focus
Customers can choose Auto focus or Manual focus function before purchase. The auto-focus machine can automatically adjust object distance to take a best picture.
3) Auto-calibration
With a calibration plate, this machine can automatically calibrating.
2. Machine Parameter
型號
Mold No
外形尺寸
L*W*H（mm）
重量
Wight
Kg
功率
Power
W
測量范圍
Measuring Window
mm
重復(fù)精度
Repeatability
MiMi-01
500*375*960
60
300
95*63.5
0.002mm
MiMi-01a
500*675*960
62
300
95*63.5
0.002mm
MiMi-02
475*450*982
98
310
93.6*70.2
0.003mm
MiMi-03
500*675*1050
72
300
134*89.4
0.004mm
3. Typical Applications

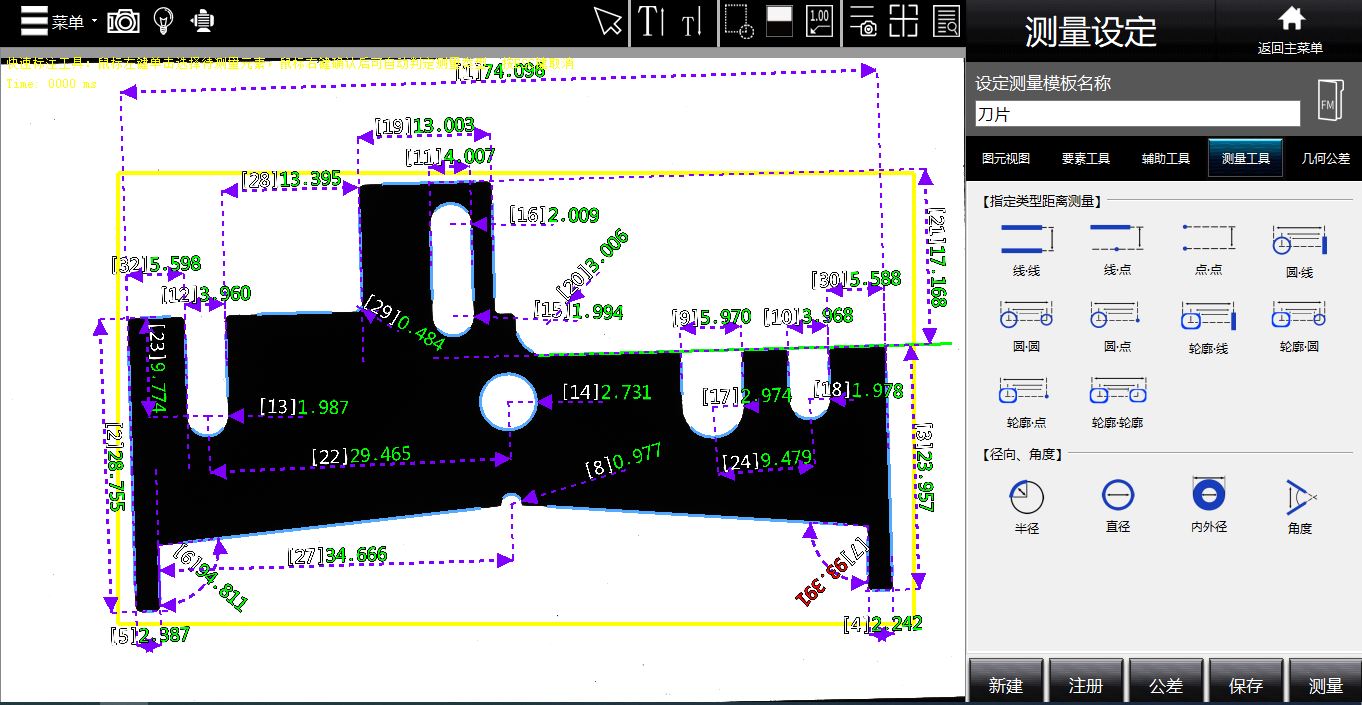

parts dimensions measurement
One time can measure, one part or many parts within 1 Second.
Machining Parts Measurement.

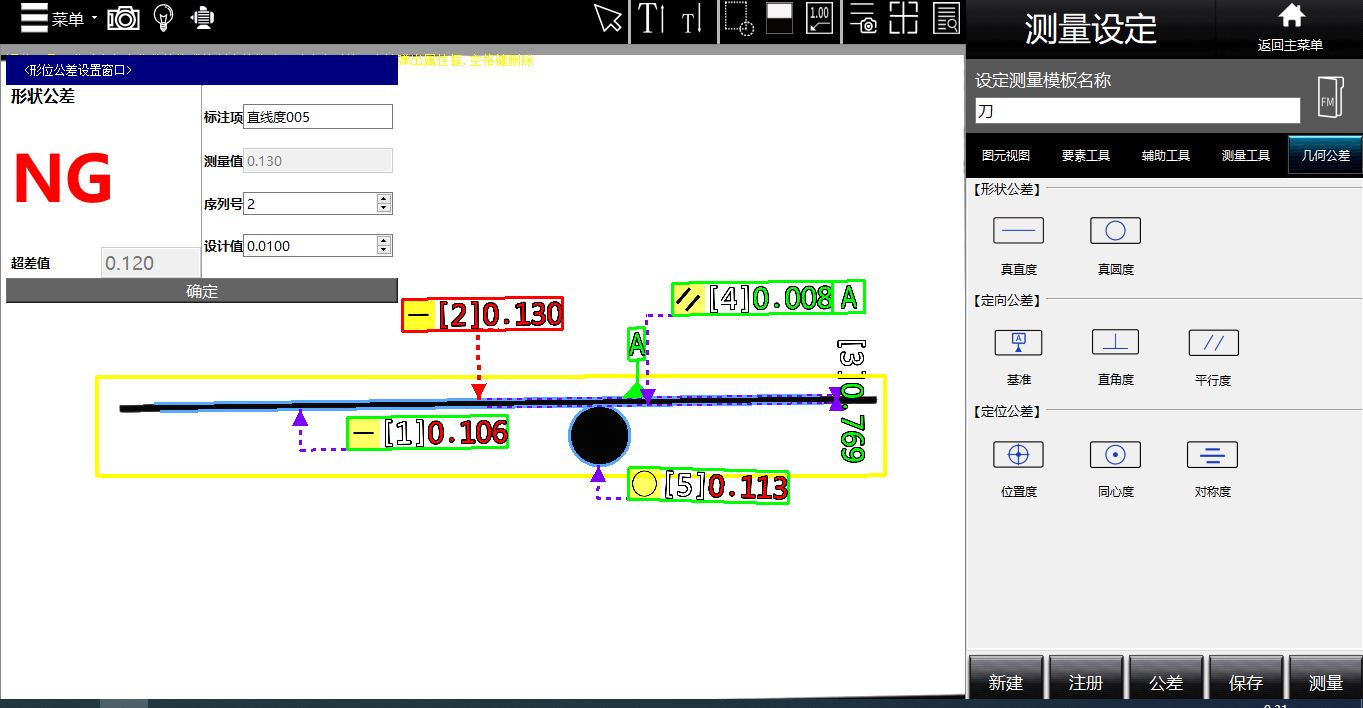

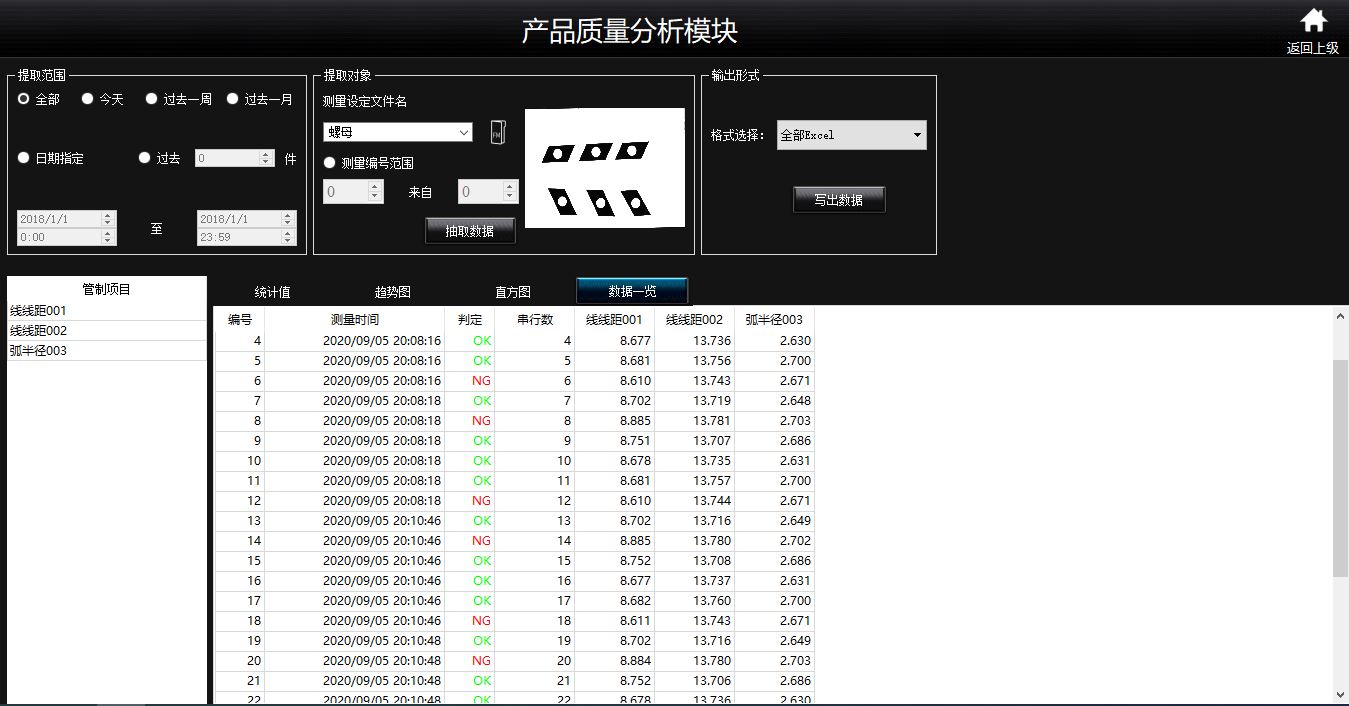

Database：This machine can Make real time database in excel Or word file。
